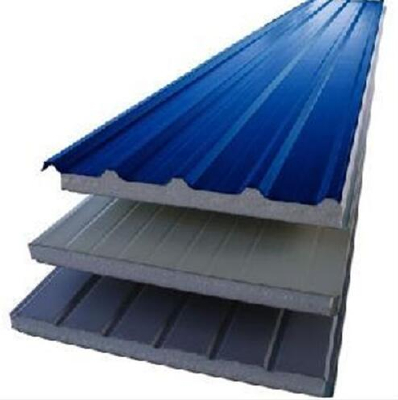

roofing EPS sandwich panel
SPECIFICATION
Thickness: | 50mm, 75mm, 100mm, 120mm,150mm |
Material of the panels | composed of colorful steel sheets and PU |
Unit Weight of Core Material | 40kg/cbm |
Width of the panels | 1000mm |
Length | As customer' s require |
Panels type | Wall panel and Roof panel |
Surface Texture and Appearance | Small wave, Flat, Embossment, Big rib |
Heat Insulating Material | pu |
Thickness of steel plate | 0.4-0.8mm |
Color of the coating | White grey, Sliver, Sea Blue, Red, etc |
Type of sheet Coating | PVDF, HDP,SMP,PE |
Type of Base steel sheet | Hot-dip galvanized, Al-Zn coated |
Life span | 20 years |
Used for roofing Used for wall
Application
1. The industry factory premises, workshop & warehouse
2. The cold room
3. Light steel housing, the original building sandwich room
4. Moving room
5. Various purification room, air conditioning room, etc
Application Building:
Production Advantage
1. Fireproof: B1 grade
2. Light weight: Only 10 kg ~ 20 kg per square meters, which is equivalent to 1/30 of the brick wall.
3. Heat insulation and heat preservation: We adopt to the "polyurethane side sealing technology" which improves the sealing performance greatly.
4. Our panels can be installed without professionals, and construction period can be reduced more than 40%.
5. Bright color, beautiful appearance.
6. High strength can make maintenance structure, bearing structure, bending compressive.
Packing and loading
